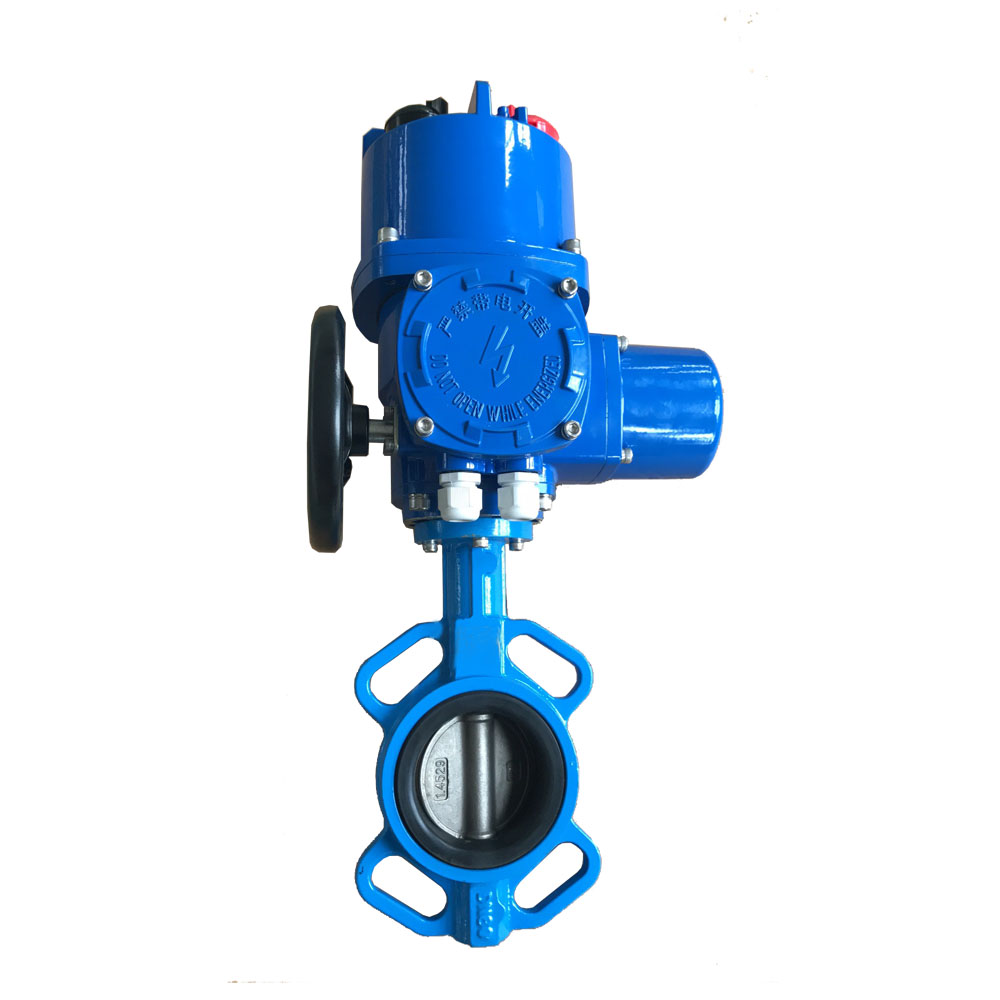

OEM/ODM ,Electric Soft Seal Wafer Butterfly Valve
The electric multi-turn electric actuator wafer butterfly valve is an automated control valve widely used in industrial pipeline systems to regulate and control the flow of media. This butterfly valve is driven by an electric actuator to open and close the valve, and has the characteristics of simple operation, rapid response, and precise control.
Product description:
The electric multi-turn electric actuator wafer butterfly valve is usually composed of an electric actuator, a connecting mechanism (such as a gearbox), a valve body, a valve plate, and a sealing component. After the actuator receives a control signal (such as a 4-20mA current signal), its output shaft will rotate a certain angle, and the action will be amplified by the connecting mechanism, thereby driving the valve plate to rotate to open or close the valve. The wafer design allows the valve to be installed between two pipe flanges, which is convenient for maintenance and replacement.
Technical features:
1. Precise control: The electric actuator can achieve precise control of the valve opening to meet process control requirements.
2. Remote operation: Supports remote electronic control operation to facilitate automated management.
3. Adjustable switching speed: The actuator switching speed is adjustable to meet different working conditions.
4. Torque control: With overload protection function, the actuator automatically stops when the valve is stuck or overloaded, protecting the valve and actuator from damage.
5. Intelligent protection: Equipped with intelligent protection functions, such as overheat protection, overcurrent protection, etc., to ensure the safe operation of the equipment.
6. Strong environmental adaptability: With a high protection level, it can adapt to a variety of working conditions.
7. Easy maintenance: The clamp-type design is easy to install and disassemble, which is convenient for future maintenance and inspection.
Product specifications:
- Nominal diameter: DN50-DN1200 (depending on the model)
- Nominal pressure: PN10/PN16/PN25, etc. (depending on the valve design)
- Applicable media: water, oil, gas and slightly corrosive media, etc.
- Working temperature: usually between -20℃ and +120℃ (depending on the material and seal)
- Control signal: standard 4-20mA DC current signal or other types of electrical signals
- Power supply: AC380V/AC220V/AC24V/DC24V, etc. (depending on the actuator model)
- Ambient temperature: The working ambient temperature of the actuator is usually between -20℃ and +60℃
- Protection level: IP65 or higher, suitable for outdoor or dusty and humid environments
- Valve material: carbon steel, stainless steel, cast iron, etc. (select according to the medium properties and working conditions).
The detailed specifications of the electric multi-turn electric actuator wafer butterfly valve will vary according to different manufacturers and models. Users should select according to specific working conditions and technical requirements.
