China-made Electric Non-rising Stem Soft Seal Gate Valve - Like Valve
The electric non-rising stem soft-sealed gate valve produced by our company is a valve specially designed for fluid control. It is widely used in industrial pipeline systems to cut off or regulate the flow of media. This gate valve is driven by an electric motor to achieve remote control and automated operation, providing accurate and reliable switch control.
Product description:
The electric non-rising stem soft-sealed gate valve is driven by an electric motor and equipped with a precise transmission mechanism to achieve linear motion of the valve plate, thereby controlling the flow of the medium. The internal soft seal design ensures zero leakage in the closed state and meets high standards of environmental protection. Electric operation allows the valve to be easily integrated into the automation system for remote control and monitoring.
Technical features:

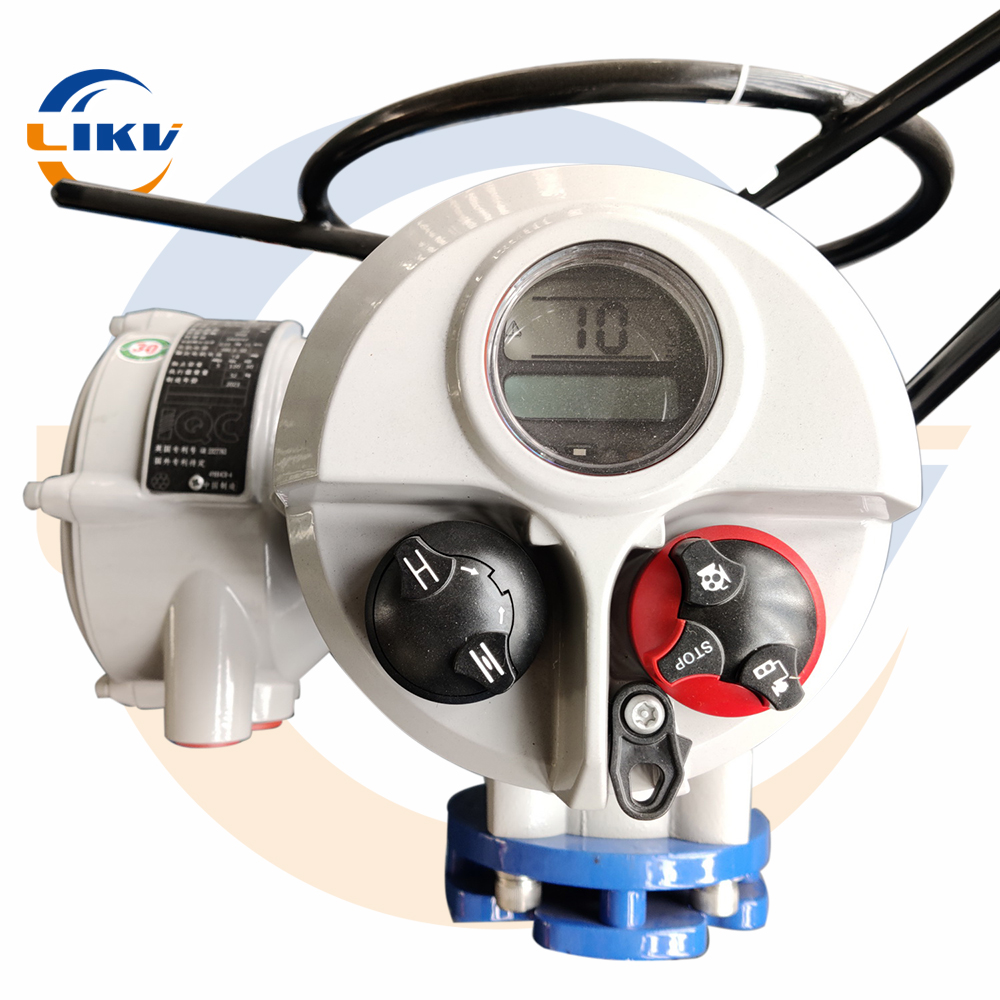

1. Precise control: The electric actuator provides precise valve position control, which facilitates process control and regulation.
2. Remote operation: It can be controlled by remote signals to support seamless integration with the automation system.
3. Soft seal design: High-quality sealing materials are used to ensure that there is no leakage when the valve is closed.
4. Torque control: The actuator has an overload protection function to prevent damage to the valve or actuator due to excessive torque.
5. Easy maintenance: The concealed rod design simplifies the appearance, reduces external pipelines, and makes maintenance more convenient.
6. Strong adaptability: Suitable for a variety of media, including water, oil, gas, etc., especially suitable for occasions that require frequent operations.
Product specifications:
- Nominal diameter: DN50-DN1200 (depending on the model)
- Nominal pressure: PN10/PN16/PN25, etc. (depending on the valve design)
- Applicable media: water, gas, oil and slightly corrosive media
- Working temperature: usually between -20℃ and +120℃ (depending on the material and seal)
- Power supply: AC380V/AC220V/AC24V/DC24V, etc. (depending on the actuator model)
- Ambient temperature: The operating ambient temperature of the actuator is usually between -20℃ and +60℃
- Protection level: IP65 or higher, suitable for outdoor or dusty and humid environments
- Valve material: carbon steel, stainless steel, cast iron, etc. (select according to the medium properties and working conditions)
Material & Size:
- Valve body material: ductile iron, carbon steel, stainless steel, etc.
- Sealing materials: Nitrile rubber (NBR), EPDM, FKM, etc.
- Connection method: Flange connection
- Size range: Customized according to specific models and requirements
Please note that the specific technical parameters, materials and sizes will vary according to the actual product model and customer requirements. When choosing a suitable electric concealed stem soft seal gate valve, factors such as the specific working conditions, media type, working pressure and temperature of the application should be considered.
